VCXO
Select any parameter below to start.
Datasheet Part Number Frequency Range Supply Voltage
Output Logic
Dimensions L * W / type
Height (mm)
Operating Temperature (°C)
G8

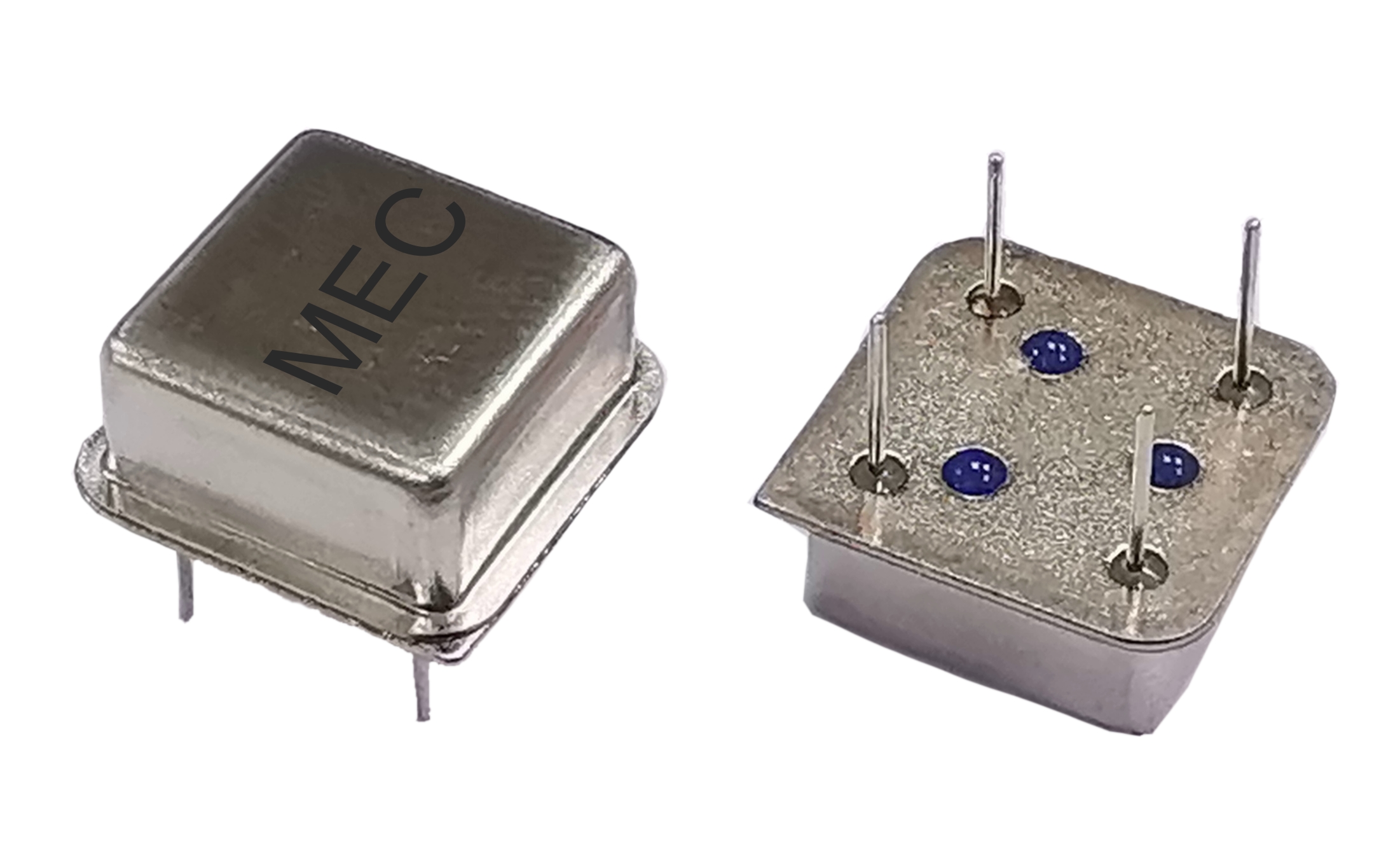

G8 12.8 x 12.8mm 5.0V  CMOS Thru-Hole Type Voltage Controlled Crystal Oscillator
1.25 ~ 50MHz 5.0 CMOS 12.8 x 12.8 5.5 -40 to +85
GDQN326

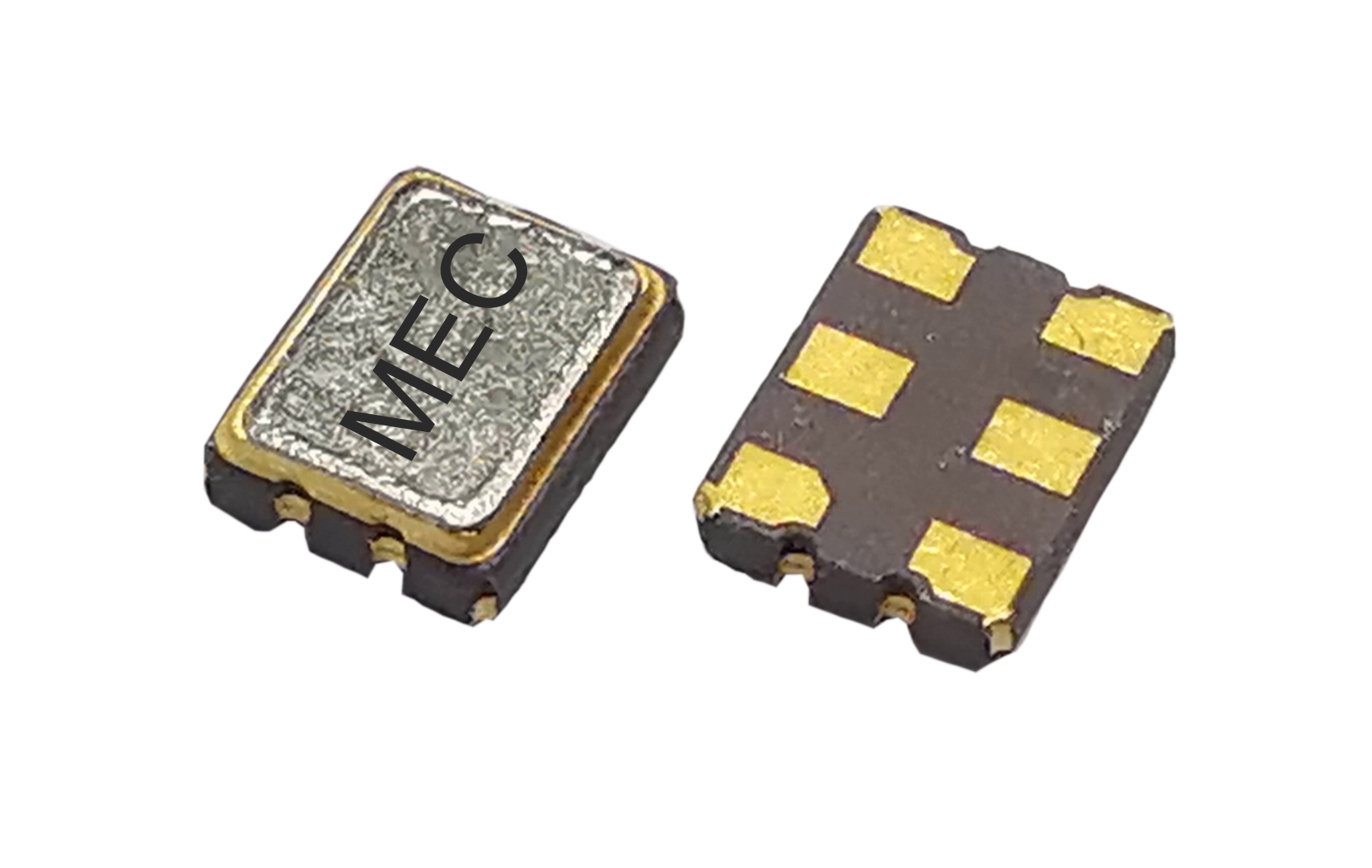

GDQN326 3225 2.5V  Low Jitter  Differential LVDS SMD Voltage Controlled Crystal Oscillator
10 ~ 1500MHz 2.5 LVDS 3.2 x 2.5 1.0 -40 to +85
GDQN326
GDQN326 3225 3.3V  Low Jitter  Differential LVDS SMD Voltage Controlled Crystal Oscillator
10 ~ 1500MHz 3.3 LVDS 3.2 x 2.5 1.0 -40 to +85
GDQN536

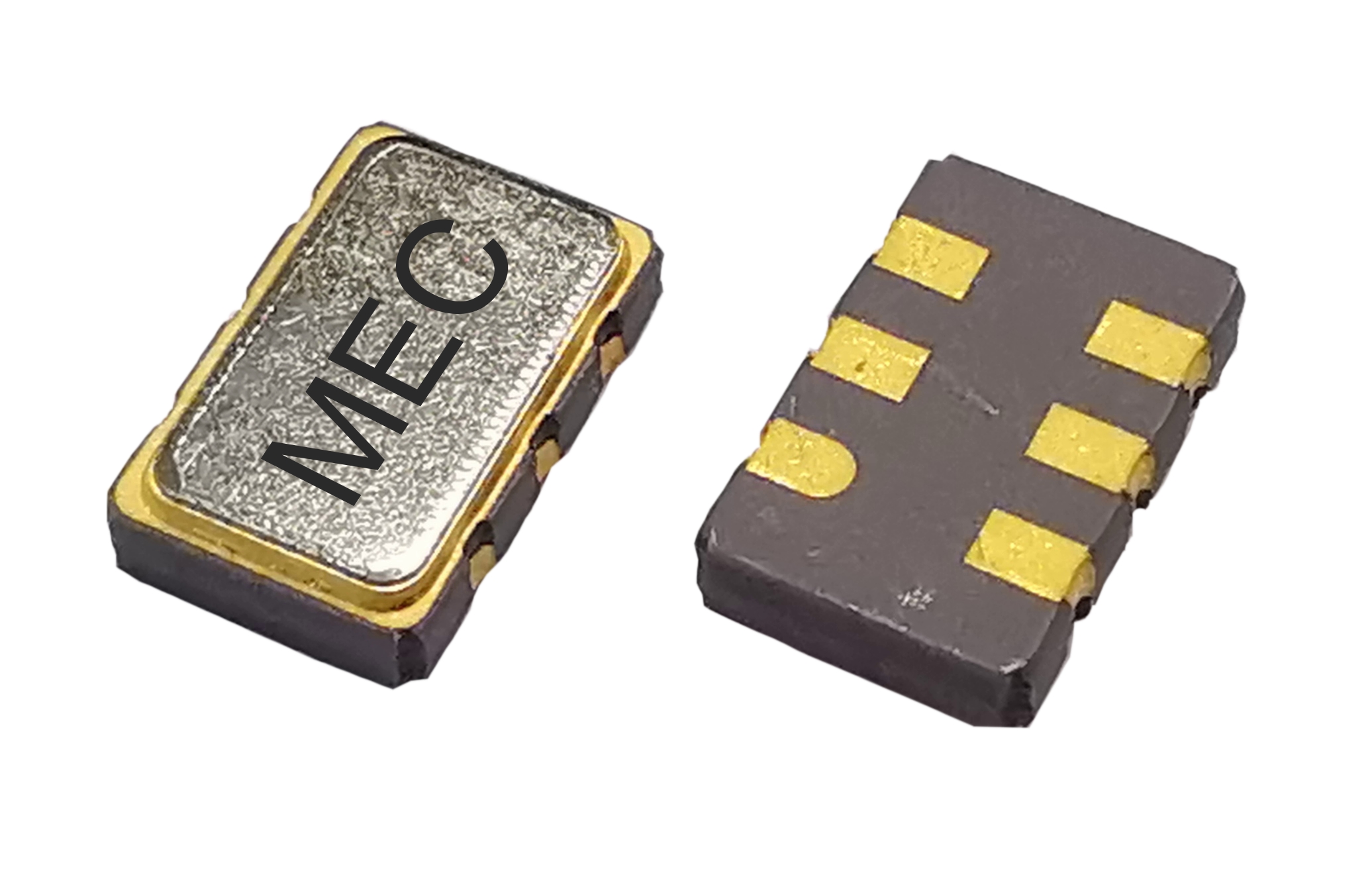

GDQN536 5032 2.5V  Low Jitter  Differential LVDS SMD Voltage Controlled Crystal Oscillator
10 ~ 1500MHz 2.5 LVDS 5.0 x 3.2 1.2 -40 to +85
GDQN536
GDQN536 5032 3.3V  Low Jitter  Differential LVDS SMD Voltage Controlled Crystal Oscillator
10 ~ 1500MHz 3.3 LVDS 5.0 x 3.2 1.2 -40 to +85
GDQN576

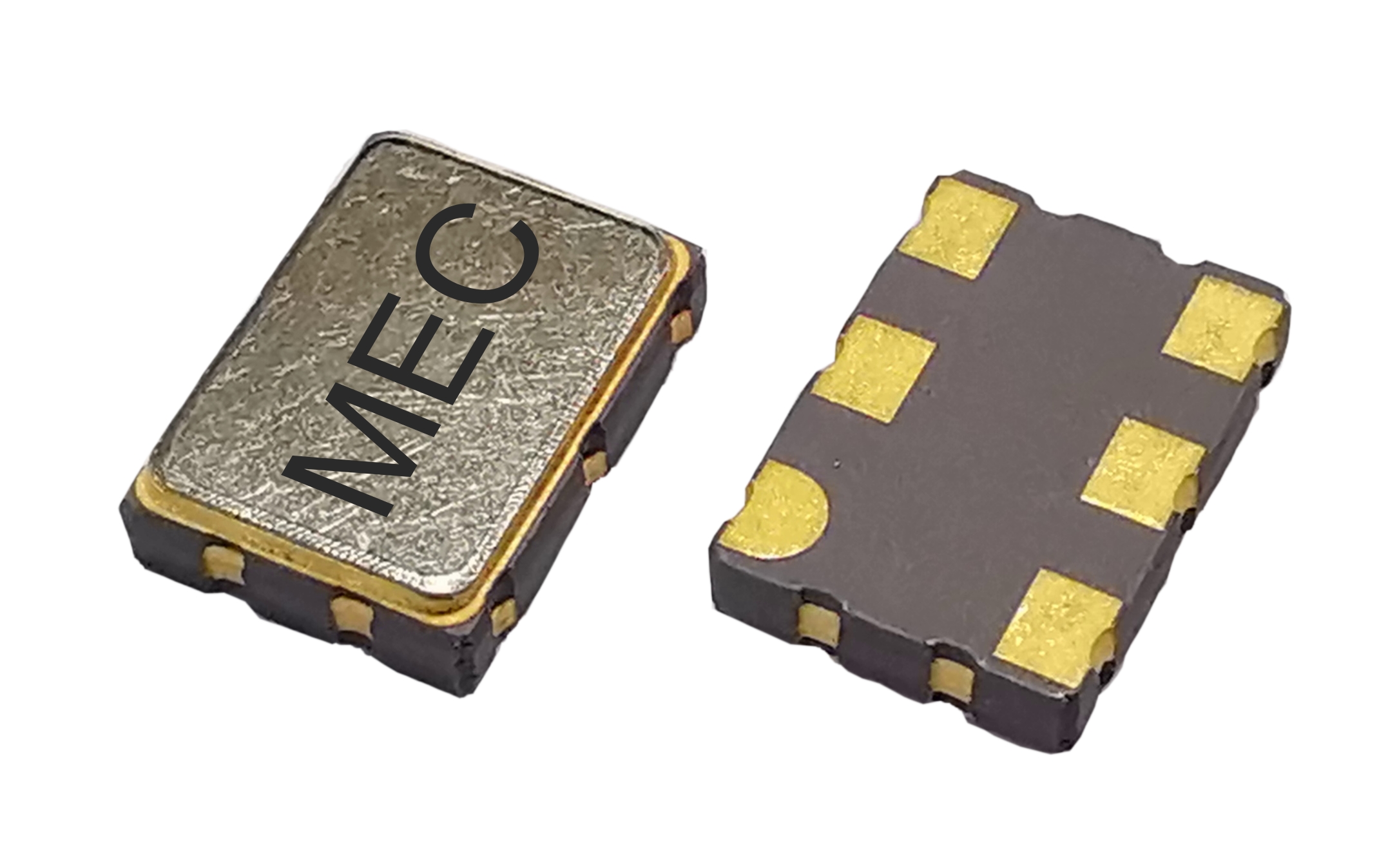

GDQN576 7050 2.5V  Low Jitter  Differential LVDS SMD Voltage Controlled Crystal Oscillator
10 ~ 1500MHz 2.5 LVDS 7.0 x 5.0 1.8 -40 to +85
GDQN576
GDQN576 7050 3.3V  Low Jitter  Differential LVDS SMD Voltage Controlled Crystal Oscillator
10 ~ 1500MHz 3.3 LVDS 7.0 x 5.0 1.8 -40 to +85
GPQN326
GPQN326 3225 2.5V  Low Jitter  Differential LVPECL SMD Voltage Controlled Crystal Oscillator
10 ~ 1500MHz 2.5 LVPECL 3.2 x 2.5 1.0 -40 to +85
GPQN326
GPQN326 3225 3.3V  Low Jitter  Differential LVPECL SMD Voltage Controlled Crystal Oscillator
10 ~ 1500MHz 3.3 LVPECL 3.2 x 2.5 1.0 -40 to +85
GPQN536
GPQN536 5032 2.5V  Low Jitter  Differential LVPECL SMD Voltage Controlled Crystal Oscillator
10 ~ 1500MHz 2.5 LVPECL 5.0 x 3.2 1.2 -40 to +85
GPQN536
GPQN536 5032 3.3V  Low Jitter  Differential LVPECL SMD Voltage Controlled Crystal Oscillator
10 ~ 1500MHz 3.3 LVPECL 5.0 x 3.2 1.2 -40 to +85
GPQN576
GPQN576 7050 2.5V  Low Jitter  Differential LVPECL SMD Voltage Controlled Crystal Oscillator
10 ~ 1500MHz 2.5 LVPECL 7.0 x 5.0 1.8 -40 to +85
GPQN576
GPQN576 7050 3.3V  Low Jitter  Differential LVPECL SMD Voltage Controlled Crystal Oscillator
10 ~ 1500MHz 3.3 LVPECL 7.0 x 5.0 1.8 -40 to +85
GTQN326
GTQN326 3225 2.5V  Low Jitter  CMOS SMD Voltage Controlled Crystal Oscillator
10 ~ 250MHz 2.5 CMOS 3.2 x 2.5 1.0 -40 to +85
GTQN326
GTQN326 3225 3.3V  Low Jitter  CMOS SMD Voltage Controlled Crystal Oscillator
10 ~ 250MHz 3.3 CMOS 3.2 x 2.5 1.0 -40 to +85
Total: 156 entries
