TCXO / VCTCXO
Select any parameter below to start.
Datasheet Part Number Frequency Range Supply Voltage ( V )
Output Logic
Dimensions L * W / type
Height ( mm )
Temp. Stabilit
ME32T
32.768kHz 1.8 CMOS 3.2 x 2.5 / SMD 4 PAD 1.3 ± 5.0ppm / -40 to +85℃
ME32T
32.768kHz 2.5 CMOS 3.2 x 2.5 / SMD 4 PAD 1.3 ± 5.0ppm / -40 to +85℃
ME32T
32.768kHz 3.0 CMOS 3.2 x 2.5 / SMD 4 PAD 1.3 ± 5.0ppm / -40 to +85℃
ME32T
32.768kHz 3.3 CMOS 3.2 x 2.5 / SMD 4 PAD 1.3 ± 5.0ppm / -40 to +85℃
ME32T
32.768kHz 5.0 CMOS 3.2 x 2.5 / SMD 4 PAD 1.3 ± 5.0ppm / -40 to +85℃

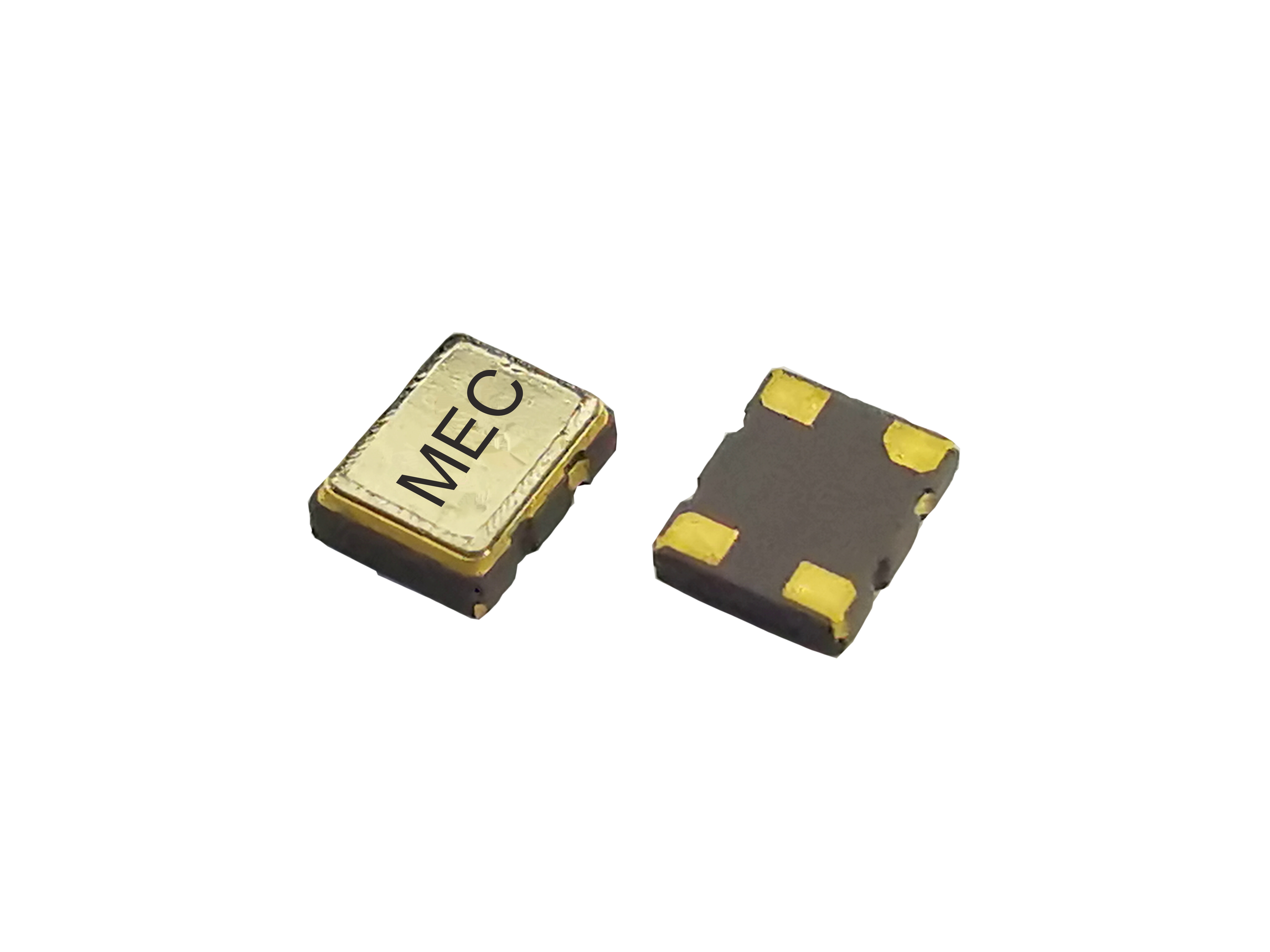

M22S
10 ~ 52MHz 1.8 Clipped Sine Wave 2.5 x 2.0 / SMD 4 PAD 0.8 ± 1ppm / -40 to +85℃
M22S
10 ~ 52MHz 2.5 Clipped Sine Wave 2.5 x 2.0 / SMD 4 PAD 0.8 ± 1ppm / -40 to +85℃
M22S
10 ~ 52MHz 2.8 Clipped Sine Wave 2.5 x 2.0 / SMD 4 PAD 0.8 ± 1ppm / -40 to +85℃
M22S
10 ~ 52MHz 3.3 Clipped Sine Wave 2.5 x 2.0 / SMD 4 PAD 0.8 ± 1ppm / -40 to +85℃

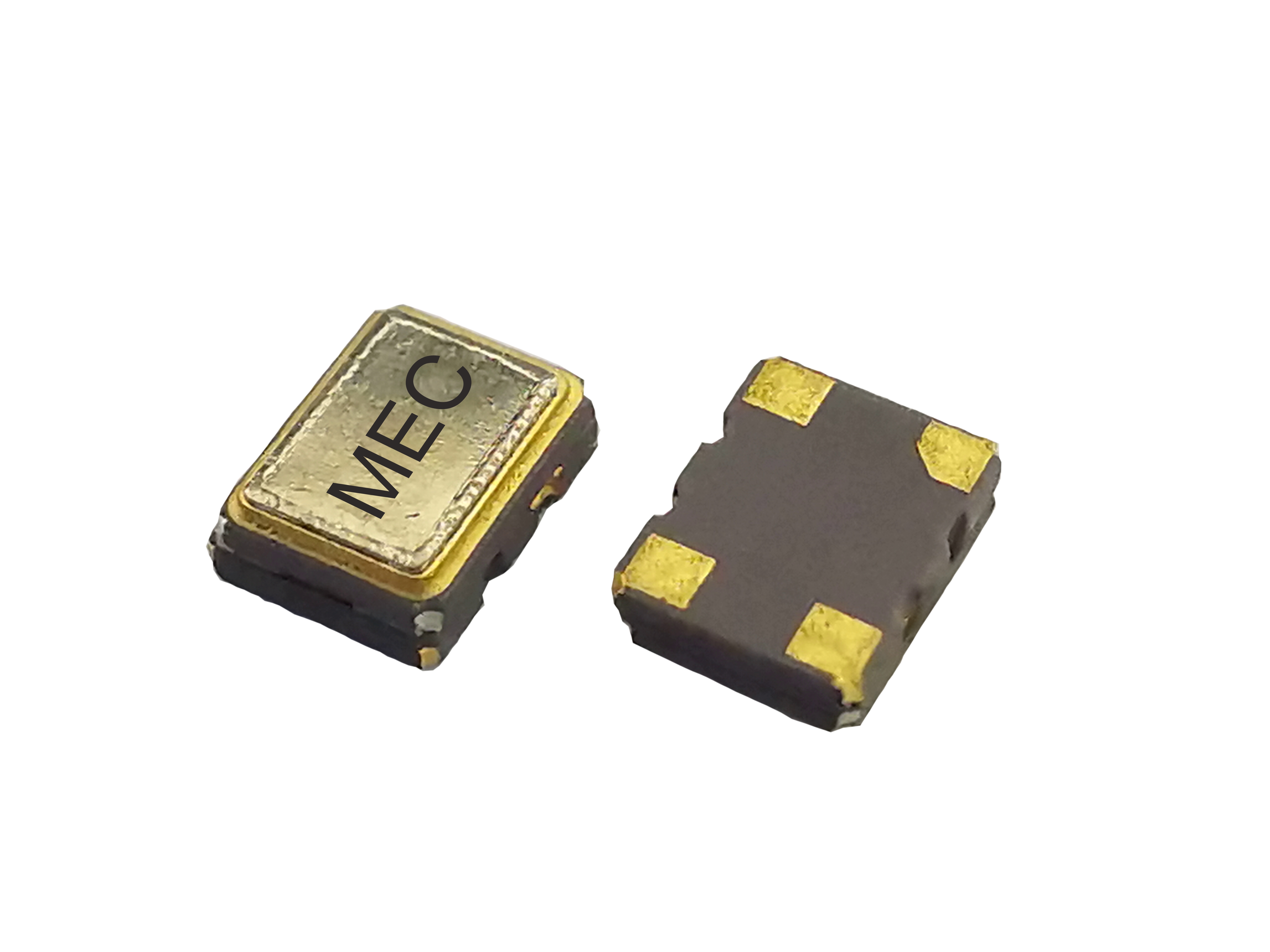

M32S
8.192 ~ 52MHz 1.8 Clipped Sine Wave 3.2 x 2.5 / SMD 4 PAD 1.0 ± 1ppm / -40 to +85℃
M32S
8.192 ~ 52MHz 2.5 Clipped Sine Wave 3.2 x 2.5 / SMD 4 PAD 1.0 ± 1ppm / -40 to +85℃
M32S
8.192 ~ 52MHz 3.0 Clipped Sine Wave 3.2 x 2.5 / SMD 4 PAD 1.0 ± 1ppm / -40 to +85℃
M32S
8.192 ~ 52MHz 3.3 Clipped Sine Wave 3.2 x 2.5 / SMD 4 PAD 1.0 ± 1ppm / -40 to +85℃
M53S
6.4 ~ 52MHz 1.8 Clipped Sine Wave 5.0 x 3.2 / SMD 4 PAD 1.3 ± 1ppm / -40 to +85℃
M53S
6.4 ~ 52MHz 2.5 Clipped Sine Wave 5.0 x 3.2 / SMD 4 PAD 1.3 ± 1ppm / -40 to +85℃
Total: 206 entries
